Made from Spare Parts left from the MATAMP JAZZ/BLUES 50 Combo Era.
The MATAMP Jazz/Blues amps were Brown Leather with a tan grill & Brass hardware.
Expensive to build and noisy little units the launch of the Jazz Blues 50 didn't go far.
There were some leftover parts from this era 1998-2001, so I had them sent over

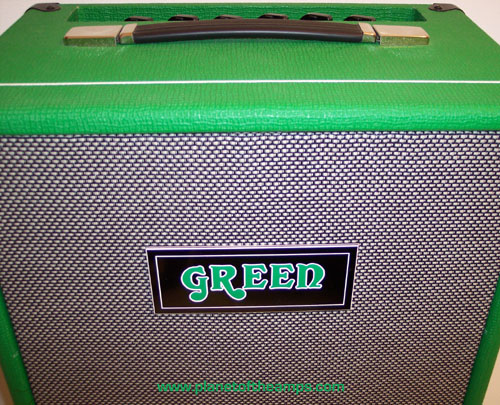

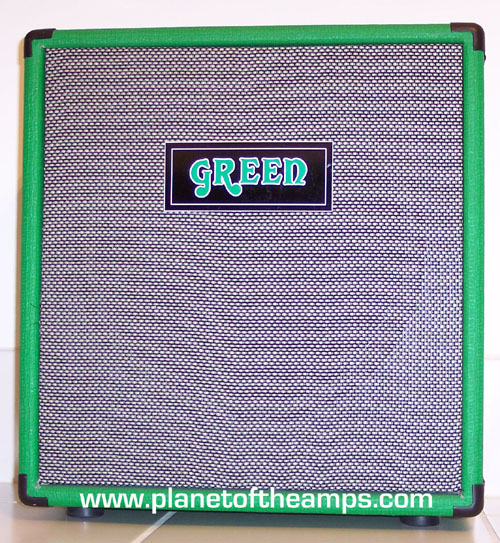

and the 1x12 Box covered in GREEN Vinyde.

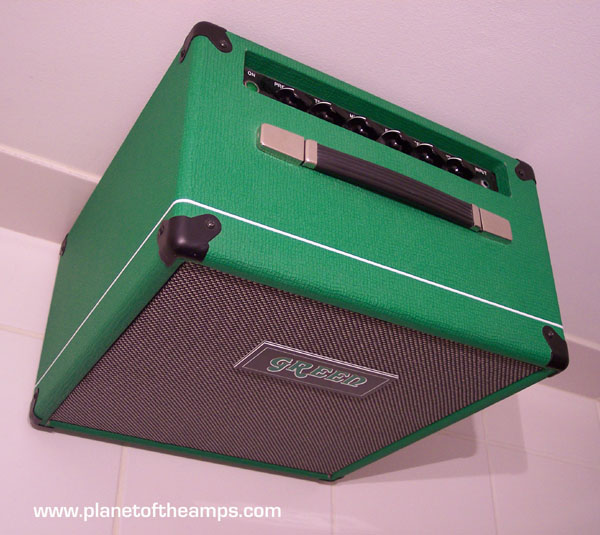

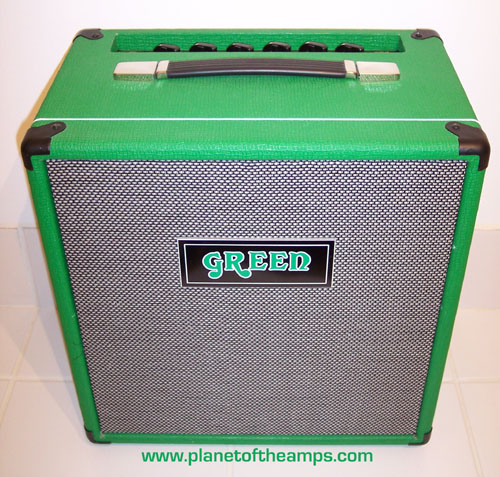

1x12 Combo at around 50watts with reverb.

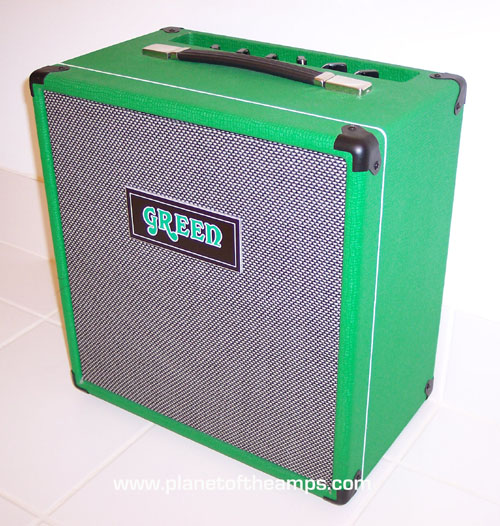

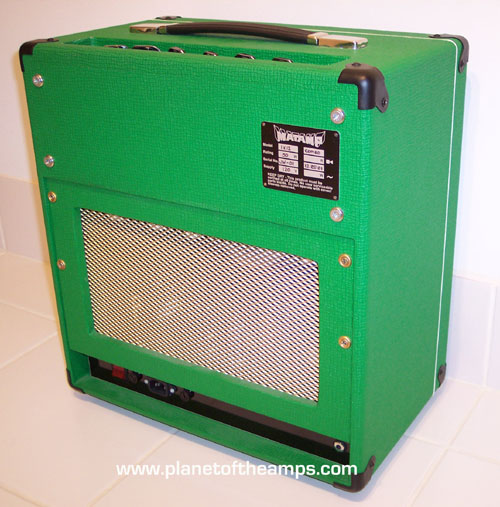

Sleek and small, this little bugger is a tight fit inside.

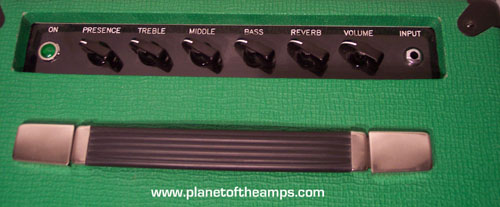

Converted to act like a GT [graphic tube] type EQ with REVERB.

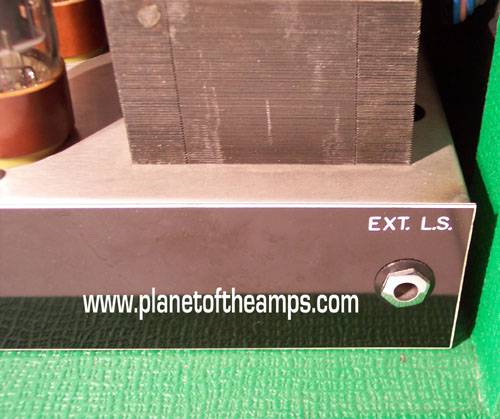

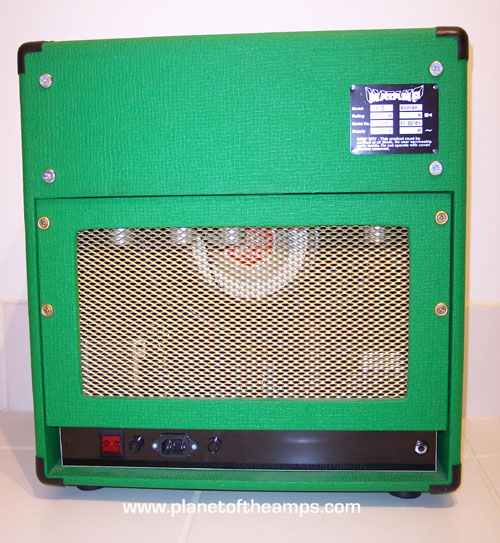

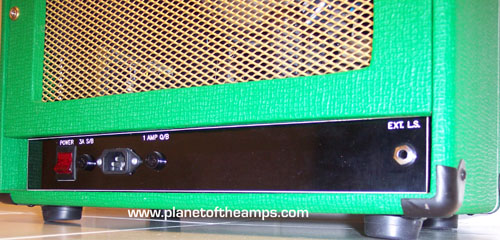

Back of the 1x12.

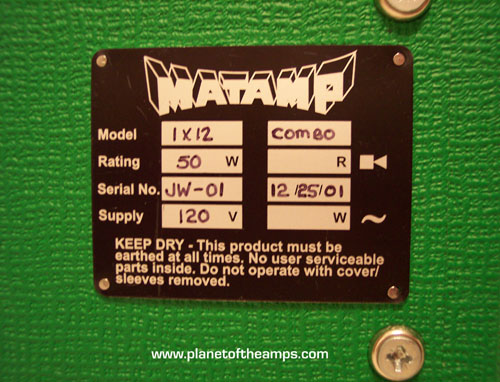

Joel Wheeler -01 ~ Made December 25th, 2001
This is the only one like this ever built.

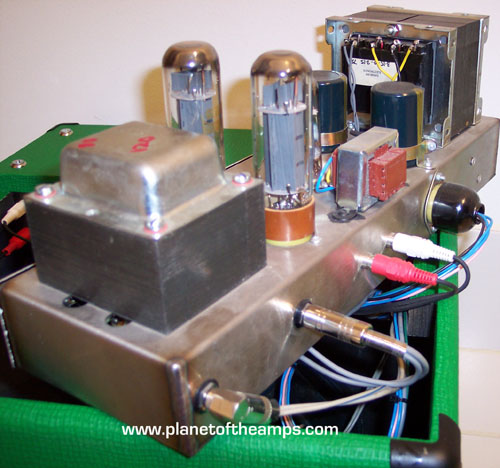

Cool little chassis of a good gauge of stainless steel.  The amp final speaker choice
was the China Made CELESTION Hot 100.

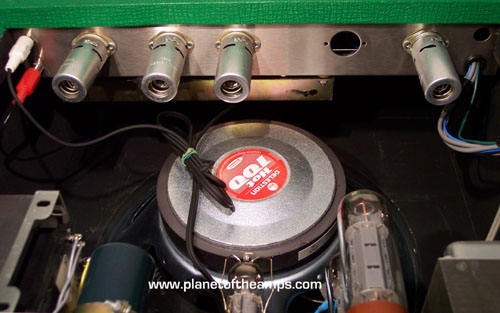

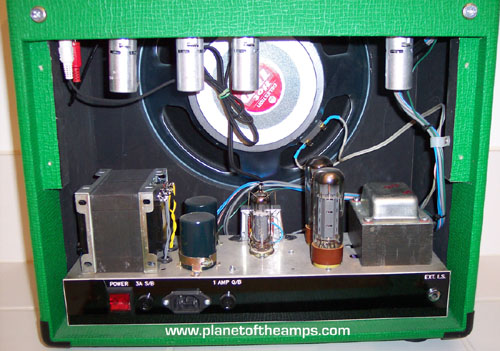

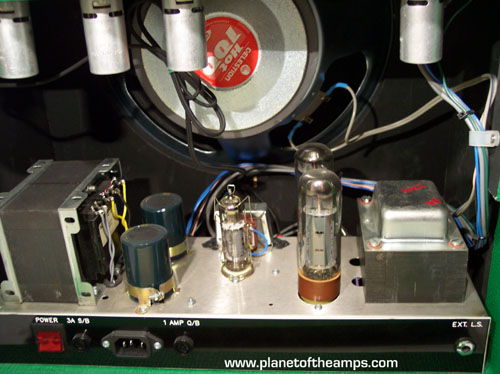

Hot 100 under the EQ and reverb tank.

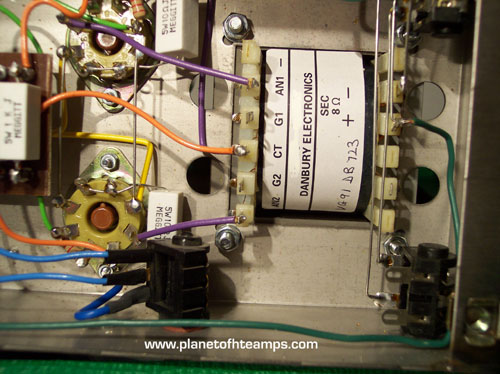

2 EL34's and a transformer change after testing many configurations
the amp came to life in good fashion.


Placement was changed under the chassis to accomplish a humm free frequency.

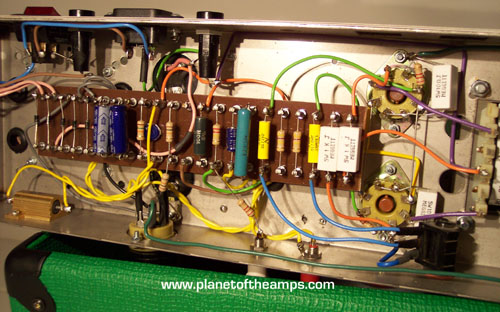

The only hardwire turret board amp with no PC's to ever have the Matamp
name on it from 1994-2001.  The next era of Matamp UK amps were turret track
type construction on Ashdown Chassis.

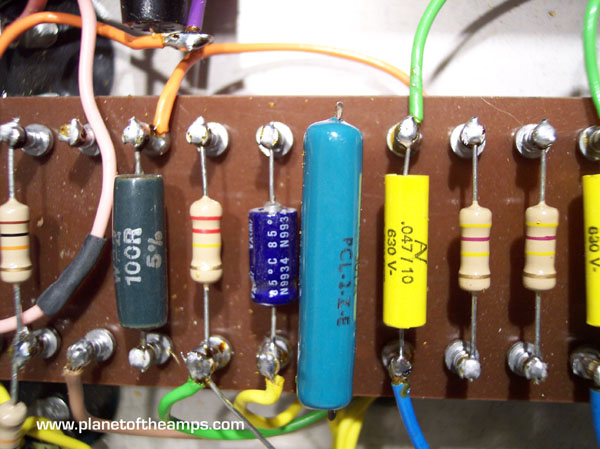

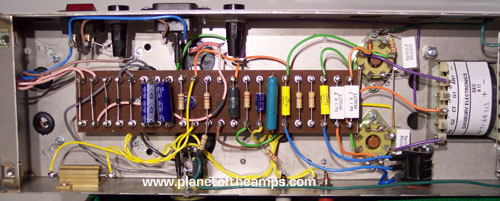

A nice generic turret board was made to mount the basics on.


Smooth Move MATAMP USA, this old dog turned out pretty trick.
