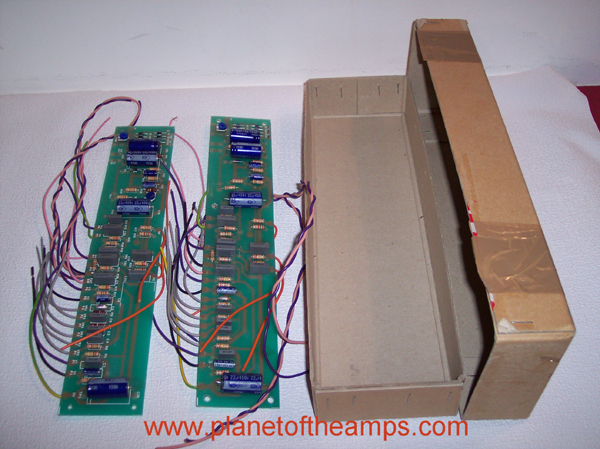

Once Upon a Time 3 Orange Voice of the World MAIN PC Boards / BRAINS arrived with
a box full of imported Matamp spare parts. New and all marked the same, however each board had a subtle
difference . One of them was used in an old ORANGE OR120 overhaul. It turned out great !
These boards can be used in any 6 knob ORANGE - OR / OD/ OTR / GT [Graphic Tube].
Many of these boards were
in the early rebuilt renditions of Orange Amps and Matamp Units
out of Matamp UK in Huddersfield
England from 1998-2001.
LEFT: Shown with
ink screened values, the RIGHT: blank no markings.

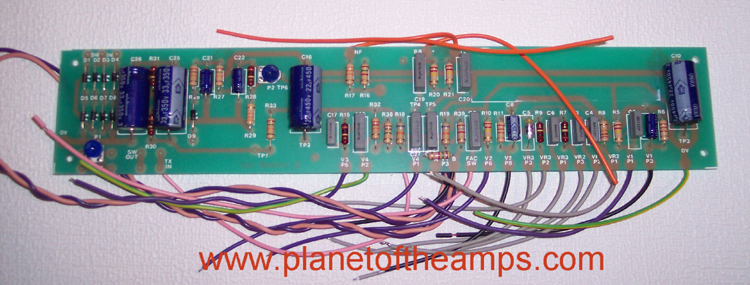

ORANGE Amp / PC BOARD
#1 With VALUE Markings:
FRONT

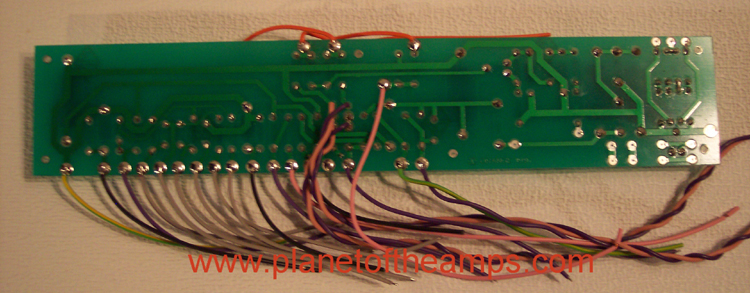

BACK

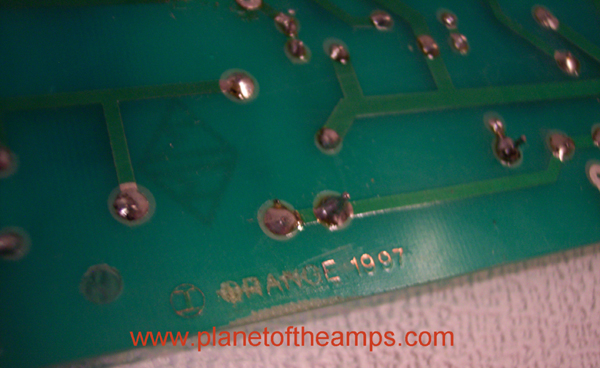

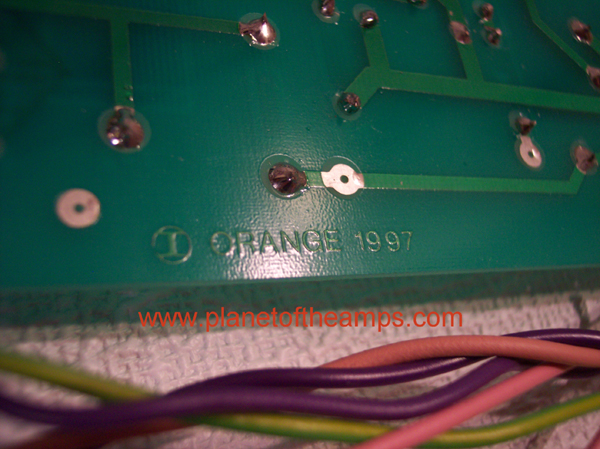

ORANGE Amplification "Voice
Of The World" 1997 PC Boards
ORANGE Amp / PC BOARD #2 Without Value Marks.

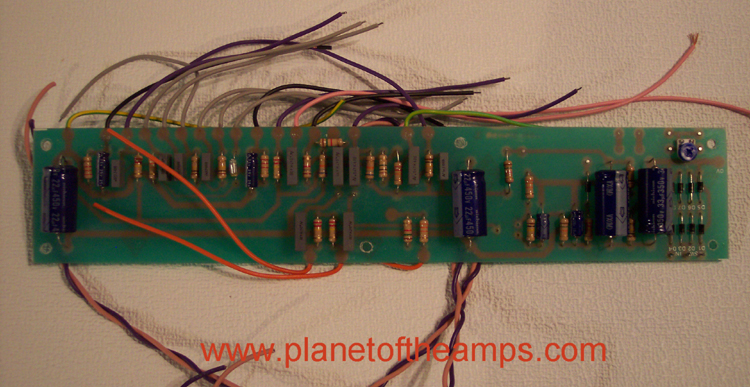

FRONT: This one is missing 1 bias or hum balance clam. The three holese are present but no clam as in the corner.

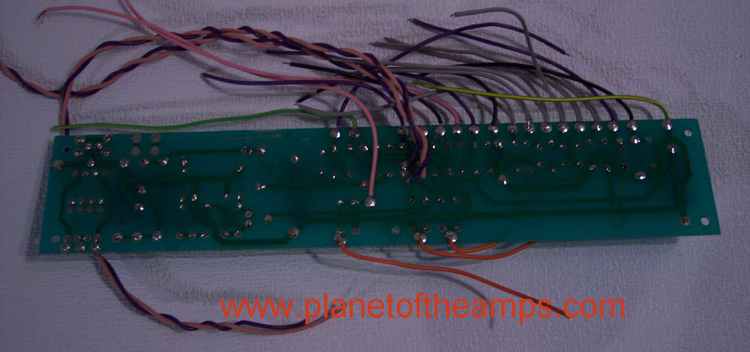

BACK
This one had been scratched. Often you will find this board in the 1998-2000 Matamp Units
with this section cut out.

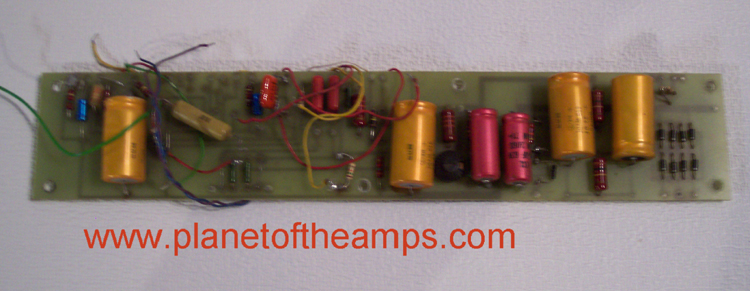

USED ORANGE OR120 / ORANGE GRAPHIC MK III BOARD

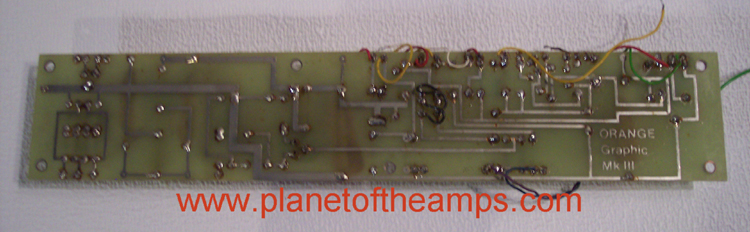

BACK: As shown with
some goopy junk welds.... Still quite capable of salvage.

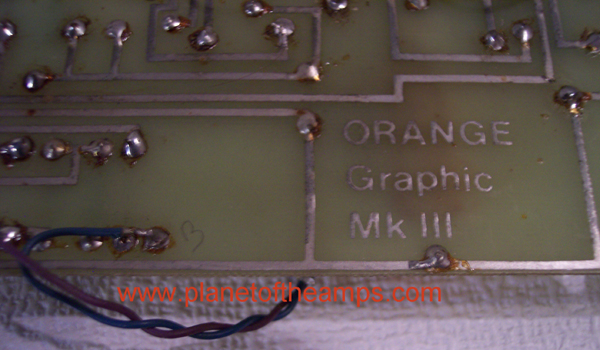

UP CLOSE - ORANGE
Graphic MK III
