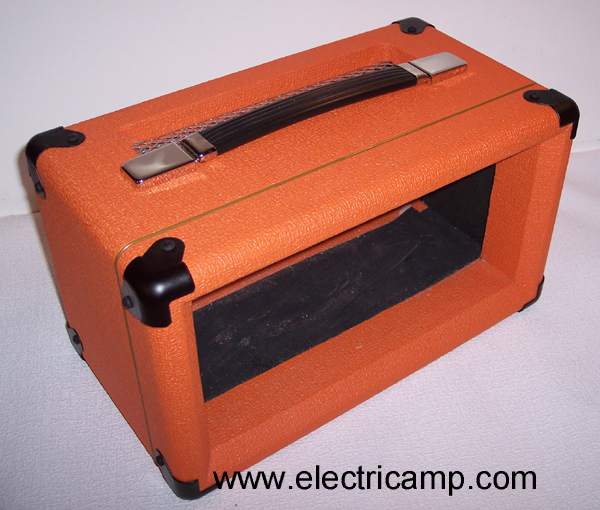

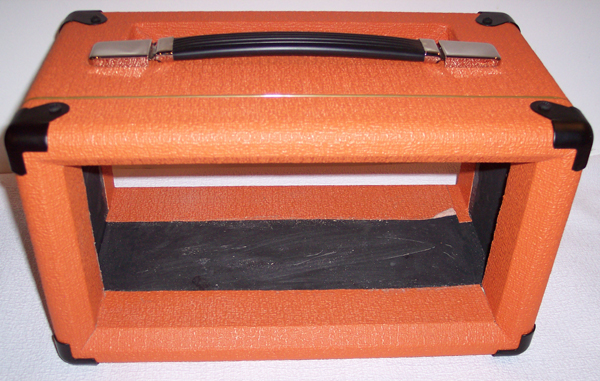

Available in most colors.
Fits ORANGE AMP TINY TERROR
SHOWN IN ORANGE NUBTEX VINYDE with
METAL CORNERS and DeLux Handle.

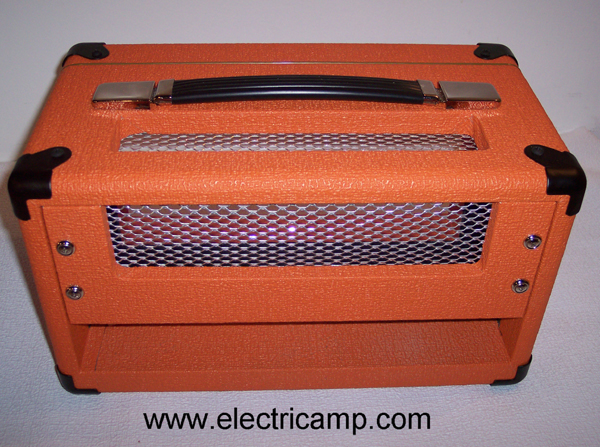

Ventilation
HOW TO INSTALL YOUR TINY TERROR INTO AN AMP SLEEVE:
PURCHASE: 1 AMP SLEEVE IN YOUR FAVORITE COLOR/VINYDE $350
4 Cage Nuts, 4 Washers & 4 Long Lugs. $6 to $8.00 US Dollars
These are used to fit thru the sleeve and secure the amp to the sleeve at the bottom panel.
STEP #1 .
REMOVE CHROME HANDLE and reinstall the top white cage.
STEP #2.

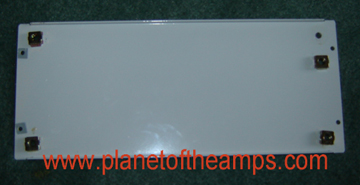

REMOVE BOTTOM PANEL and PUNCH 4 SQUARE HOLES.
STEP #3 Place
4 CAGE NUTS IN THE 4 SQUARE PUNCH HOLES.
[you can purchase the square punch for $8.00 wherever they sell cage nuts.]
Or you can drill a hole then use a knibbler
tool or file to make it square.
MAKE SURE YOU put the one shown in the
upper right off set from the corner.
If you put it in the corner like the rest
the lug is too close and could/will hit the PC board.
STEP #4 Line
up the bottom panel to the bottom of the amp sleeve and mark them.
STEP #5 Drill
the holes in the amp sleeve to match.
STEP #6
Put the bottom Panel back on the amp.
STEP #7
Put amp inside the sleeve and lign up the holes.

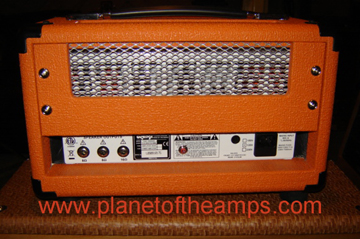

STEP #8
Install the lugs and rubber feet.

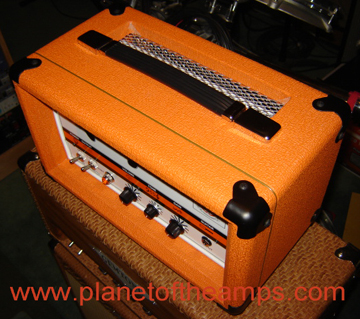

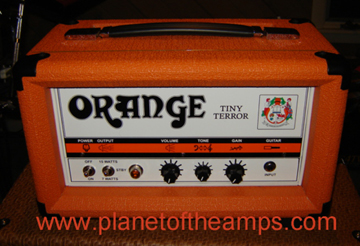

NOW THAT LOOKS
SWEET !

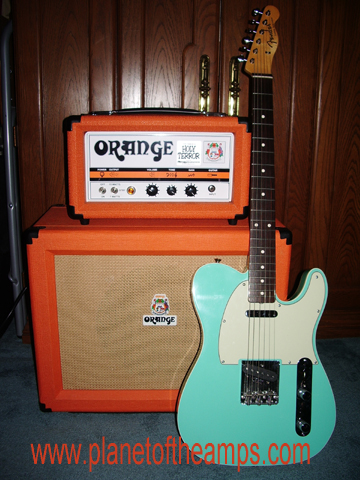

HOLY
TERROR CONVERSION
for
ORANGE
Amp TINY TERROR
Watch
Bob
in Nashville!
His video footage will provide great
instruction on upgrading transformers etc.,
with the awesome HOLY TERROR Upgrade/Conversion
kit
from Mercury Magnetics !
